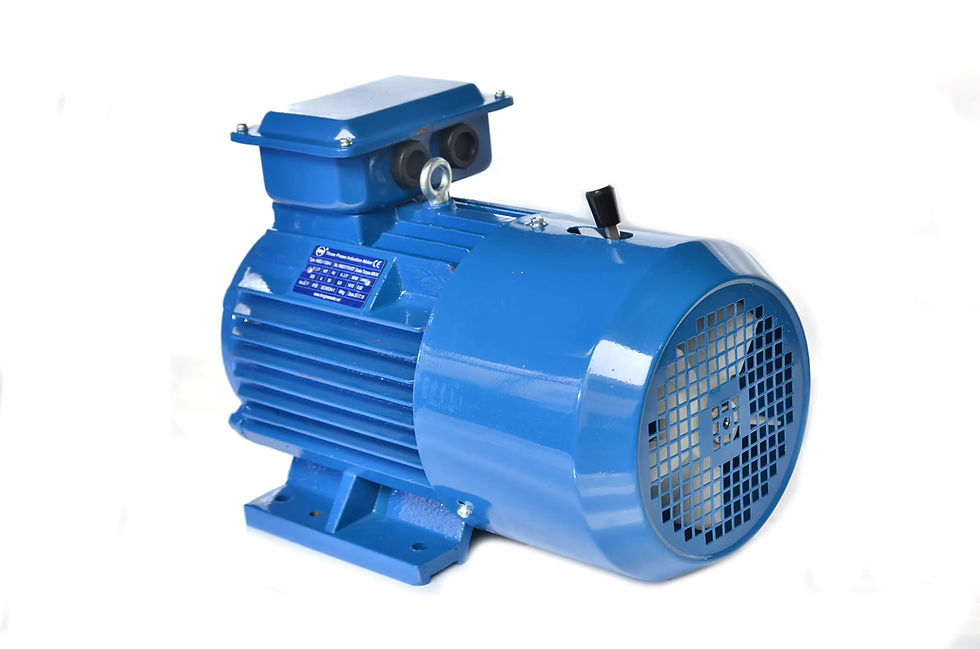

Three-Phase AC Electric 380VAC Brake Motor 4POLE
Introduction
Our three-phase AC brake motors are engineered for precision and safety in demanding industrial applications. These motors combine the power and efficiency of a three-phase induction motor with a high-performance braking system, providing reliable stopping and holding capabilities.

Ideal for use in hoists, cranes, conveyors, and other machinery requiring controlled braking, our brake motors ensure maximum operational safety and performance.

Key Features
Integrated Braking System: Equipped with a robust electromagnetic or DC brake for reliable and quick stopping.
100% Copper Winding: Enhances efficiency and durability, reducing energy loss and extending motor lifespan.
12-Month Warranty: Comprehensive warranty against manufacturing defects, backed by dedicated customer support.
Durable Construction: High-grade materials ensure long-term reliability in harsh industrial environments.
Versatile Mounting Options: Available in foot and flange mounted configurations for easy integration.

With features like integrated braking systems, 100% copper winding, and versatile mounting options, these motors are the ideal solution for applications requiring controlled stopping and holding.

Three-Phase AC Electric 380VAC Brake Motor 4POLE

₨50,000.00Price

General Specifications

  • Motor Type: Three-phase AC induction brake motor
  • Mounting Types: Foot mounted and flange mounted
  • Frame Sizes: 63 to 355 (dependent on model)
  • Power Range: 0.37 kW to 375 kW
  • Voltage: 230/400V (up to 3 kW), 400/690V (above 3 kW)
  • Frequency: 50/60 Hz
  • Poles: 2, 4, 6, 8
  • Insulation Class: F (with class B temperature rise)
  • Protection Class: IP55
  • Cooling Method: IC411 (self-ventilated)
  • Duty Type: S1 (continuous duty)

Brake Specifications

  • Brake Type: Electromagnetic brake
  • Brake Torque: Adjustable to suit application requirements
  • Brake Voltage: 24V DC, 110V AC, 230V AC (customizable)
  • Response Time: Quick engagement and release for precise control
  • Operation: Fail-safe operation, brake engages on power failure

Performance Characteristics

  • Efficiency Class: IE2 / IE3 / IE4 (depending on model and customer requirements)
  • Power Factor: 0.85 to 0.95 (depending on load and speed)
  • Starting Torque: 2.5 to 3 times the rated torque
  • Breakdown Torque: 2.5 to 3.5 times the rated torque
  • Noise Level: <75 dB (A) at 1 meter distance

Construction Details

  • Stator Winding: 100% copper for optimal efficiency and longevity
  • Rotor Type: Die-cast aluminum
  • Bearings: High-quality deep groove ball bearings, grease-lubricated
  • Housing Material: Cast iron or aluminum
  • Terminal Box: Top-mounted or side-mounted with easy access for wiring

Environmental and Operational Conditions

  • Ambient Temperature: -20°C to +40°C
  • Altitude: Up to 1000 meters above sea level
  • Humidity: Suitable for up to 95% relative humidity (non-condensing)
  • Vibration Level: Conforms to ISO 10816

Compliance and Standards

  • Standards: IEC 60034, IEC 60072
  • Certification: CE, UL, CSA
  • Energy Efficiency: Compliant with EU MEPS, NEMA Premium, and other international standards
